Security System Concept and Interfacing With 3rd-Party Device
Need Of Security System
A security alarm is a system designed to detect intrusion – unauthorized entry – into a building or area. Security alarms are used in residential, commercial, industrial, and military properties for protection against burglary (theft) or property damage, as well as personal protection against intruders. Car alarms likewise protect vehicles and their contents. Prisons also use security systems for control of inmates. Some alarm systems serve a single purpose of burglary protection; combination systems provide both fire and intrusion protection. Intrusion alarm systems may also be combined with closed-circuit television surveillance systems to automatically record the activities of intruders, and may interface to access control systems for electrically locked doors. Systems range from small, self-contained noisemakers, to complicated, multi-area systems with computer monitoring and control.
Some alarm systems serve a single purpose of burglary protection; combination systems provide both fire and intrusion protection. Intrusion alarm systems may also be combined with closed-circuit television surveillance systems to automatically record the activities of intruders, and may interface to access control systems for electrically locked doors. Systems range from small, self-contained noisemakers, to complicated, multi-area systems with computer monitoring and control.
-
Preventive measure you need for your family, wealth and health.
-
It's value for money and it will protect you 24x7 round the clock.
-
Better control on your home, when you’re away on a business trip or vacation
-
You can rely on machine.
How It Works
Main Element Of Home Security and Alarm System
1. Control Panel
2. Power Supply
3. Sensor's Network
4. Alert Interfacing with Human(Re-Direction: Siren, Buzzer, Display
Unit, Internet User, Mobile User )
Security Control Panel
The panel consists of
Micro-controller, GSM Modem, RF reciver 433 or 314 Mhz, LED Display
LCD Display, USB Interface for Advance Monitoring, Relay for
Electrical Appliances Interfacing
Wired Sensor Input, Battery Charge and Backup supply Module,
Consistent DC Power supply through DC/DC Converter. Internet data
can be redirect through agent URL i.e.www.synapse-system.com
Real time logs
GSM Module is responsible for to communicate mobile user via SMS,
Call Dialing, Mobile App and the module will send any events to
dedicated internet web server. Through this web server user can
configure his Facebook id or
Mail ID.
Wireless RF Sensor Receive
The main panel having RF receiver module , this RF module consists of decoding address or store the required transmitter address
USB Interface for Developer or 3rd-Party Software Interfacing.
The user can send and receive the
data in plain text format. The user can interface their module via
USB port at serial port mode and default speed is 9600pbs.
following row's with fields can be received through usb port.
0910300000001 myPasswd 19 13 UNARMED 19-03-2012 00:10
------- Field Details
Are-------------------------------------------------------------
0910300000001 is Device Serial No
myPasswd is
System Password
19
is Event No
13
is Wireless Address
UNARMED is
Description of Sensor
19-03-2012 00:10 is Event Time Stamp
Battery Backup and Power Supply in the panel
The one subsystem is really important
is power supply module. following check point are required for
buyer.
1. Battery Recharge Cycle (1000-2000), it defines the battery
life.
2. What is inside capacity of backup battery in term mAh,
(i.e. 7.5V , 1500mAh, It defines the back-up time.)
3. What is the Siren Loud when power failure happen?
Security Sensor's Network

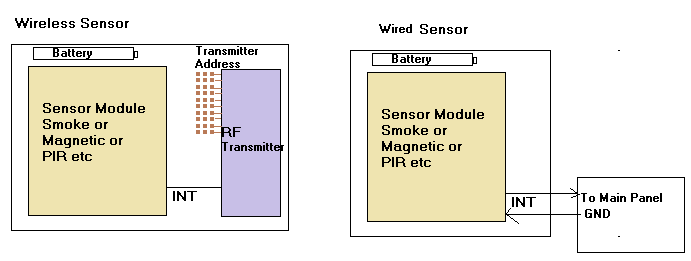

User can use wired or wireless sensor
as per user requirement, As our opinion both kind of sensor's are
reliable, Following sensors are available.
Remote Key
Magnetic Door Sensor
PIR Human Motion Sensor
Smoke Sensor
Glass Break Sensor
Gas Sensor etc

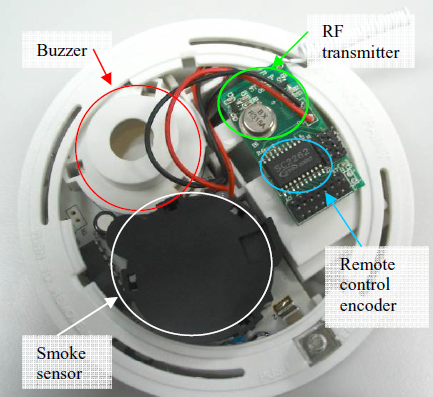

Example of Smoke Sensor and Its Components
